2 Axis Vertical Precision Digital Level – Model: DWL-1900XY
- Measuring Range: 90.000° ~ ±5.000° dual-axis
-
Measurement Resolution Table:
Vertical Stroke Length (mm) Resolution 50 1µm / 50mm 100 2µm / 100mm 150 3µm / 150mm 300 5µm / 300mm 400 7µm / 400mm 500 9µm / 500mm 800 14µm / 800mm 1,000 17µm / 1,000mm - Measurement Accuracy: Zy-axis: ± 34µm/1,000mm stroke length at (90.000°±0.500°) ± 68µm/1,000mm stroke length at other angles
Zx-axis: ± 34µm/1,000mm stroke length at (90.000°±0.500°) ± 68µm/1,000mm at other angles - Operating Temperature: 10°F to 120°F or -10°C to +50°C
- User may use device without or with Bluetooth® Measurement when paired with smartphone & Digi-Pas Smart level App (Optional)(Bluetooth range: approx. 15mtr)
- ACCURACY of Digi-Pas digital level is verified by accredited 3rd Party Calibration & Test Laboratories in USA, Japan and Germany traceable to NIST, JIS & DIN.
Precision angular measurement/alignment on vertical axis essentially involves two intertwined vertical planes (2-axis i.e. Zx & Zy) which demand for 2-dimensional solution rather than the outdated single-axis method using Frame/Rectangular spirit vial level that could only indicates 'one axis at a time'. But, in reality, aligning one vertical axis of a plane (such as a vertical spindle shaft. e.g. Zx axis) would simultaneously change the angle on the other plane of the shaft e.g Zy axis.
Digi-Pas DWL1900XY provides measuring readings on both Zx & Zy axis simultaneously in great precision and when combined with the use of DWL1500XY on horizontal Hx & Hy axis at surface of machine work-table leveling planes, they simultaneously display measuring readings on the PERPENDICULARITY of VERTICAL against HORIZONTAL Planes.
Digi-Pas DWL-1900XY is an AFFORDABLE Wireless-Bluetooth, Dual-Axis VERTICAL Precision Digital Level designed for industrial users & professionals. DWL-1900XY replaces old-fashioned FRAME vial levels. Users read both VERTICAL Zx & Zy axis plane angular readings wirelessly via Bluetooth, which effectively cuts down installation & setup ALIGNMENT time effortlessly for precision CNC machines & Coordinate Measurement equipment, especially when used in conjunction with "DigiPas Smart Level" Mobile App (Free one redeemable app with each purchase) with user’s smartphone (additional option to purchase multiple app available on Apple & Android App Stores).
Digi-Pas Precision Digital Level is highly accurate, verified by 3rd parties accredited calibration labs & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025:2005 and ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN. "
Features
-
MODE
Switch angle display between X & Y Axis
-
ALTERNATE ZERO SETTING
Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.
-
ABSOLUTE LEVEL SETTING
Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.
-
USER SELF CALIBRATION
Easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.
-
"Digi-Pas Smart Level" APP (SMARTPHONE/TABLET)
Users may fully utilize Bluetooth mobile features for wireless levelling/alignment activities. One App is FREE to be redeemed for each purchase. Additional PAID Apps can be purchased from Apple and Google Stores. Each App works with the designated smartphone/tablet. Each App can connect with any device DWL1900XY (no restriction).
Download
Mobile application download
Steps to Redeem your 1st FREE "Smart Level App"
First, please download Smart Level Sync App from Apple or Google Store into your smartphone or tablet to enable FREE redemption of your app. If you who need more than one app to share a single device among multiple users, additional paid-apps can be purchased from Apple or Google Store.
NEXT, please follow steps below:
Step 1
Tap "Redeem" on top right corner of App.
Step 2
Gently scratch off the label on the back of the App Card accompanied to reveal the hidden 16-digit code.
Step 3
Enter the 16-digit code & Company name then tap "Redeem" button.
Step 4
"Redeemed Successful" is prompted and you can use full features of the App now.
Mobile Application Key Features
| FREE | PRO | ||
|---|---|---|---|
| FEATURES | |||
 |
Calibration | ||
 |
Single Axis | ||
 |
Smart 2D Bubble® | ||
 |
Quick Snap | ||
 |
Multiple Device | ||
| FUNCTIONS | |||
 |
Absolute level | ||
 |
Alternate Zero | ||
 |
Units Measurement Change | ||
 |
Enlarge | ||
 |
Hold | ||
Applications
-
Digi-Pas® 2-axis precision digital level simultaneous displays of two-dimensional plane angles, effectively simplifying and resolve the hurdles of taking angles 'one axis at a time' iteration (tedious & time consuming task of trial-and-error) experienced when using those outdated single-axis 'bubble' or traditional digital levels to conduct surface plane levelling, tilt angle measurement, surface flatness profiling and precision 2D alignment tasks.
-

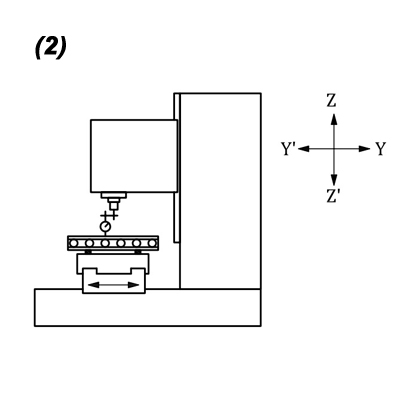

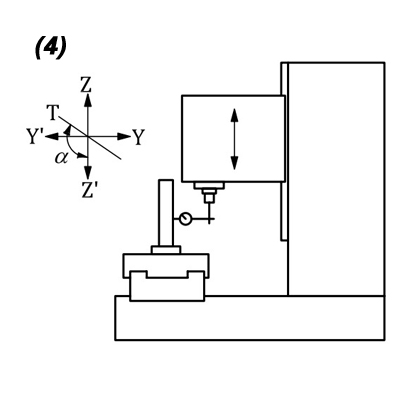

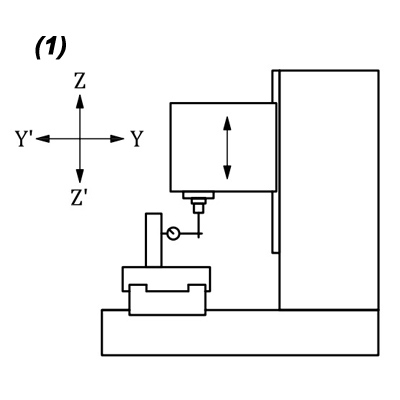

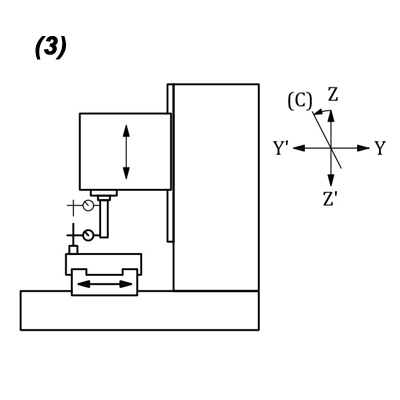

Digi-Pas® DWL-1900XY are used for installation, setup, maintenance of milling & surface grinding CNC machines. It is able to accurately level jig & fixtures and worktable of the machines prior to machining process for achieving exact and precise flat surface machining. Precise fabrication setups keep the machined parts within the required tolerance.
-
The simultaneous display for dual-axis feature of Digi-Pas® DWL-1900XY master machinist digital level speeding up alignment procedures and reducing training level for new operators to reliably achieve precise levelling results. Operator does not need to meticulously taking readings in both directions over and again as experienced with traditional single-axis levels.
-
Digi-Pas® DWL-1900XY 2-Axis model is used for Vision Measurement Equipment installation & setup. Levelling & checking equipment's positional Stability for high quality sharp image capturing & measurement.
-
Digi-Pas® DWL-1900XY is used for aligning precision fixtures. Absolute levelling and positional accuracy are required in meeting tight tolerance for highest quality in many manufacturing processes within semiconductor wafer foundries.
-
Digi-Pas® DWL-1900XY dual axis model is used for monitoring a precision wafer manufacturing equipment's performance.
-
Digi-Pas® DWL-1900XY is used in railway maintenance & operation to detect rail tracks deformation and elevation variations. It is a useful tool in aids for rail lines realignment, repair and construction of a new rail line. Accurate rail tracks longitudinal profile levelling and transversal alignment lead to enhanced safety standard for high speed railway operation.
