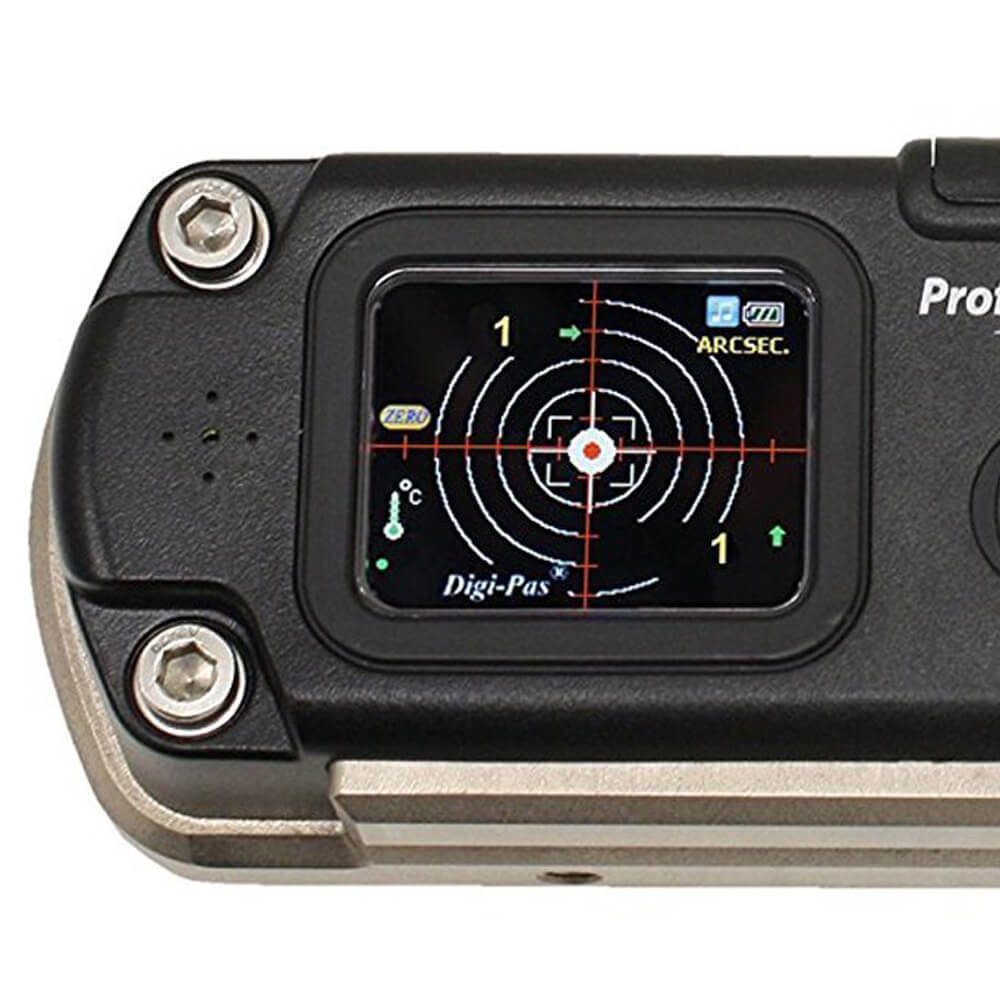

2-Axis Ultra Precision Inclinometer - Model: DWL 8500XY

DWL-8500XY is a 2-Axis Ultra Precision Inclinometer with built-in Vibrometer, having resolution and accuracy of 1 arcsec or 5µm/M and wide measuring range of 14,400 arcsec or 70mm/M for leveling, 2D tilt angles, planar alignment & vibration measurements, and capable of real-time wireless Bluetooth/USB remote measuring & data logging.

It is designed to greatly simplifying the task of professionals & specialists in installation, setting up, analysis and characterization of very large-sized CNC machines, surface flatness profiling, high precision test/measuring instruments & alignment-sensitive equipment.

Overview

Specification

Measuring range from 0.0 to 14400 Arcsec Single-Axis
  0.0 to 7200 Arcsec Dual-Axis
Resolution of 1 Arcsec (≤ 5µm/M)
Accuracy ±1 Arcsec at 0 to 1080 arcsec
  ±3 Arcsec at other angles
3D surface geometry graph using PC-Sync Software for high accuracy surface flatness profile measurement
3-points contact base for most stable surface-to-surface contact to prevent “rocking”
Digital colour graphic display of Dual angles
4 X AAA 1.5V batteries
Enable USB External power source
VibroMeter Display real time vibration graph
AngularMeter Display real-time angle graph
Professional PC Sync Software USB connection to device for remote data logging
Wireless Bluetooth Class 1 connection (approx. 30 Meters) from PC to device
Operating temperature at +10°C to +40°C

Benefit

SPEED & PRECISION
Instant 2-Axis simultaneous digital display of high resolution & accuracy providing a comprehensive solution for precision levelling, alignment, surface profiling & vibration measurements, completely eliminate trial-and-error (i.e. going back and forth) to take reading one axis at a time, resulting in time saving and quality professional works.
CLARITY
Digital colour graphic & numeric display to enable real-time collection & storage of digital angle/levelling/alignment/surface profile data for machine commissioning accountability & analysis.
EFFECTIVE
The remote reading Wireless/USB Cable capability via PC/Tablet/Smartphone providing advantages that traditional single-axis spirit level or single-axis digital level is difficult or unable to match. i.e. effectively, only one person is required to level/align a machine.
ACCREDITATION
Instrument accuracy is verified by accredited 3rd party Calibration & Test bodies and National Metrology Centre of Singapore traceable to SI standard and NIST, JIS, UKAS & DIN under CIPM MRA.

Detail Specification

Features

3D SURFACE GEOMETRY PROFILE GRAPH

Enable user to perform surface flatness geometry measurement in 3-Dimensional visual graph when in Synchronization with PC using PC-Sync software.

DUAL ANGLE DISPLAY

Dual-Axis (X-Y) colour graphic display of angular & vibration measurements real-time digital & analog display for angles & vibration monitoring, data logging & analysis

HIGH PRECISION ANGLE MEASUREMENT

Very High resolution of 1 arcsec angular measurement. Wireless Bluetooth/USB PC links for remote data logging capability. Graphical display of real-time measuring data on device TFT LCD screen.

VIBROMETER

Built-in Vibrometer for real-time vibration monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen.

ANGLEMETER

Built-in Anglemeter for real-time Angle monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen.

ALTERNATE ZERO SETTING

Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.

ABSOLUTE LEVEL SETTING

Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.

USB LINK TO PC

USB connection for remote acquisition, monitoring, data logging & analysis in computer.

WIRELESS SYNC

Wireless connection (Bluetooth class 1) to device for remote monitoring, data logging & analysis from computer. (PRO PC sync software is required)

PC SYNC SOFTWARE - PROFESSIONAL EDITION

Enable advance features for remote data logging, processing & analysis on angular & vibration measurements. Specifically for precision machine operation performance optimization.

Applications

With reference to Digi-Pas® User's testimonials, feedbacks and comments, and from interacting with professionals, trade specialist, armatures, tradesmen and DIY users in many countries over the years, countless valuable application information on "where", "how" and "why" Digi-Pas® Digital Levels have been obtained.

This application information has enabled Digi-Pas® to improve its existing product quality, reliability and functional performances. It also allows Digi-Pas® to continuously innovate unique "World-First" new product with exciting features and aesthetic designs that delights and benefits many Digi-Pas's existing and new users.

Digi-Pas® DWL-8500XY 2-Axis Ultra Precision Inclinometer is used for very large size CNC machining set up and quality assurance purposes. Machine performance evaluation & analysis can be characterised using DWL-8500XY leveling and vibrometer..

Digi-Pas® DWL-8500XY is used in the manufacturing of large format industrial and commercial printers, and also the installation, set up and preventive maintenance of such precision large printers in achieving high fidelity colour, quality image performance and reducing waste.

Digi-Pas® DWL-8500XY Dual Axis Ultra Precision Inclinometer is used in high speed railway quality assurance & maintenance & operation.

In research laboratory, laser beam setup that involves alignment of multiple optical components is a challenging process. With the assistance of Digi-Pas® DWL-8500XY, tilt angle of mirror and position of lenses is aligned accurately to achieve high precision angular and translational displacement of laser beam.

Digi-Pas® DWL-8500XY 2-Axis Ultra Precision Inclinometer is used during installation & setup of Vision Measurement Equipment for levelling & checking equipment's positional stability to achieve high quality sharp image capturing & measurement.

Digi-Pas® DWL-8500XY 2-Axis Ultra Precision Inclinometer is suitable for precision Coordinate Measurement Machine (CMM) installation & setup. The device provide high precision levelling and checking for machine's positional stability to achieve high quality sharp image capturing and measurement.

Digi-Pas® DWL-8500XY 2-Axis Ultra Precision Inclinometer is used for installation, setup & maintenance very precision measurement instruments in wafer foundry.

Digi-Pas® DWL-8500XY 2-Axis Ultra Precision Inclinometer is used for aligning precision fixtures. Absolute levelling and positional accuracy are required in meeting tight tolerance for highest quality in many manufacturing processes within semiconductor wafer foundries.

Digi-Pas® DWL-8500XY 2-Axis Ultra Precision Inclinometer is used for monitoring a high precision wafer manufacturing equipments performance.

Digi-Pas® DWL-8500XY Dual- Axis Ultra Precision Inclinometer is used in conjunction with a guided laser beam to assist setup of satellite launch pad.
